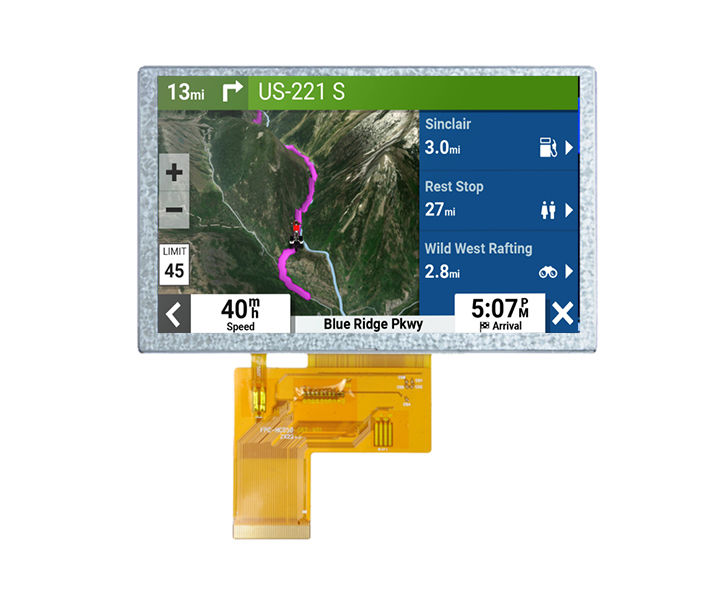

5 inch TFT LCD display with ips full viewing angle 800x480 resolution

Name: 5 inch TFT LCD display with ips full viewing angle 800x480 resolution
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC050IG40031-B04V01
Availability: InStock

Детали продукта

Place of Origin: China

Фирменное наименование: HETECH

Сертификация: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC050IG40031-B04V01

Условия оплаты & доставки

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Получите самую лучшую цену

Детали продукта

Характер продукции

Выделить:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5 inch TFT LCD display IPS, 5 inch LCD screen 800x480 resolution, TFT LCD display full viewing angle


P/N:	HC050IG40031-B04V01	Size:	5"(IPS)
Display type:	(IPS)	Resolution:	800*480
Outline dimension:	120.7(W )75.8(H)2.9(T)mm	Active area:	108(W)*64.8(H)mm
Brightness:	400cd/m2	Interface:	40pinRGB
Viewing angle:	80/80/80/80	Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃	Contrast ratio:	1000
Aspect rati16:9o:	16:9	Application:	VoIP phone, patient monitor, thermostat, laboratory weight scales

P/N:	HC050IG40031-B04V01
Size:	5"(IPS)
Display type:	(IPS)
Resolution:	800*480
Outline dimension:	120.7(W )75.8(H)2.9(T)mm
Active area:	108(W)*64.8(H)mm
Brightness:	400cd/m2
Interface:	40pinRGB
Viewing angle:	80/80/80/80
Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃
Contrast ratio:	1000
Aspect rati16:9o:	16:9
Application:	VoIP phone, patient monitor, thermostat, laboratory weight scales

5 inch TFT LCD display with ips full viewing angle 800x480 resolution

5 inch TFT LCD Display with IPS Full Viewing Angle 800x480 Resolution

Product Attributes

Attribute	Value
P/N	HC050IG40031-B04V01
Size	5"(IPS)
Display type	(IPS)
Resolution	800*480
Outline dimension	120.7(W )75.8(H)2.9(T)mm
Active area	108(W)*64.8(H)mm
Brightness	400cd/m2
Interface	40pinRGB
Viewing angle	80/80/80/80
Operation Temp.	-20~70℃
Storage Temp.	-30~80℃
Contrast ratio	1000
Aspect ratio	16:9
Application	VoIP phone, patient monitor, thermostat, laboratory weight scales

Product Description

HC050IG40031-B04V01 is a 5-inch display with an IPS display mode. Relying on the moderate size and excellent display effect, this display has been widely used in VoIP phone, patient monitor, thermostat, laboratory weight scales and other application fields.

The resolution of this display is 800*480 pixels, which can provide a clear display effect. Its brightness of 40pin RGB and contrast ratio of 1000:1 make its color presented on the screen more vivid. Embedded in a compact frame of 120.70mm*75.80mm*2.90mm, this display shows an active area of 108.00mm*64.80mm.

This display has an interface of 40pin RGB, which is compatible with a wide range of devices and allows efficient data transmission. In addition, the HC050IG40031-B04V01 has advantages in terms of temperature. Even under temperature fluctuations ranging from -20°C to 70°C, it can ensure the function runs properly without being damaged.

General Specification

Parameter	Value
P/N	HC050IG40031-B04V01
Size	5inch
Display type	Normally Black,IPS
Resolution	800*480
Outline Dimension(mm)	120.7(W )75.8(H)3.1(T)mm
Active Area(mm)	108(W)*64.8(H)mm
Brightness(cd/m²)	400
Viewing Angle(L/R/T/B)	80/80/80/80
Interface	40pinRGB
Operation Temperature	-20~70℃
Storge Temperature	-30~80℃
Aspect ratio	16:9
Contrast ratio	1000
Application	VoIP phone, patient monitor, thermostat, laboratory weight scales

Pin Assignment

Backlight Driving Conditions

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition
Voltage for LED backlight	Vf	16.5	18.6	19.3	V	If=40mA
Current for LED backlight	If	-	40	-	mA	-
LED life time	-	-	20000	-	hrs	If=40mA

Product Drawings

5-inch LCD Display Series

Warm reminds: if models listed below can't meet your requirements, customization can be made according to your specific requirements but it is not limited to LCM, RTP, CTP, driver board, etc.

No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	5"	HC050IG25031-B04V01	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	250	-20~70℃	-30~80℃

Customization

FAQ

Q1. Can I have a sample order for LCD Display?

A: Yes, we welcome sample order to test and check quality

Q2. What about the lead time?

A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx.

Q4. How to proceed an order for LCD Display?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Besides damage caused by human factors, within one year warranty from the start of shipping. If there are special conditions, the warranty time will be separately notified.
